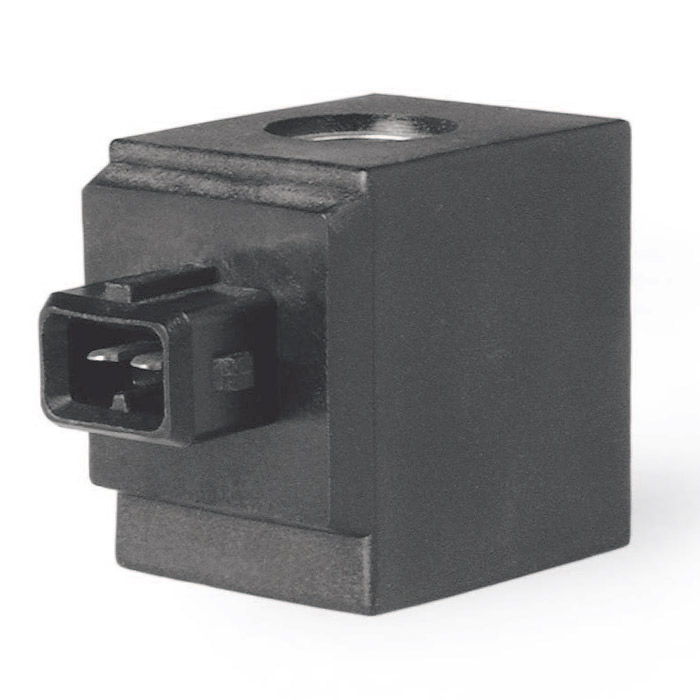

Product Description

SPECIFICATIONS:

– Copper wire: H class (180°/200°C).
– Isalation class: F (155°C) and H (180°/200°C) accordino to VDE regulation
– Waterproof level: IP65 with right mounted connector
– Gasket ring O-RING built in NBR 70sh.

WORKING:

– Nominal voltage: Vdc: 12-24V Vac: 24-110-230V – 50/60Hz
– Power abs. at 20°C: 21/26W in DC working 25/35VA in AC working
– Max overvoltage: 10% of nominal voltage
– Working temp.: -30°C to 40°C
– Others voltages and powers on request

OVERMOULDED MATERIALS:

– Only first class materials.
– Standard material is Nylon charged glass (Crastin and Ryton on request)

ELECTRIC CONNECTIONS:

- AMP type connector.
